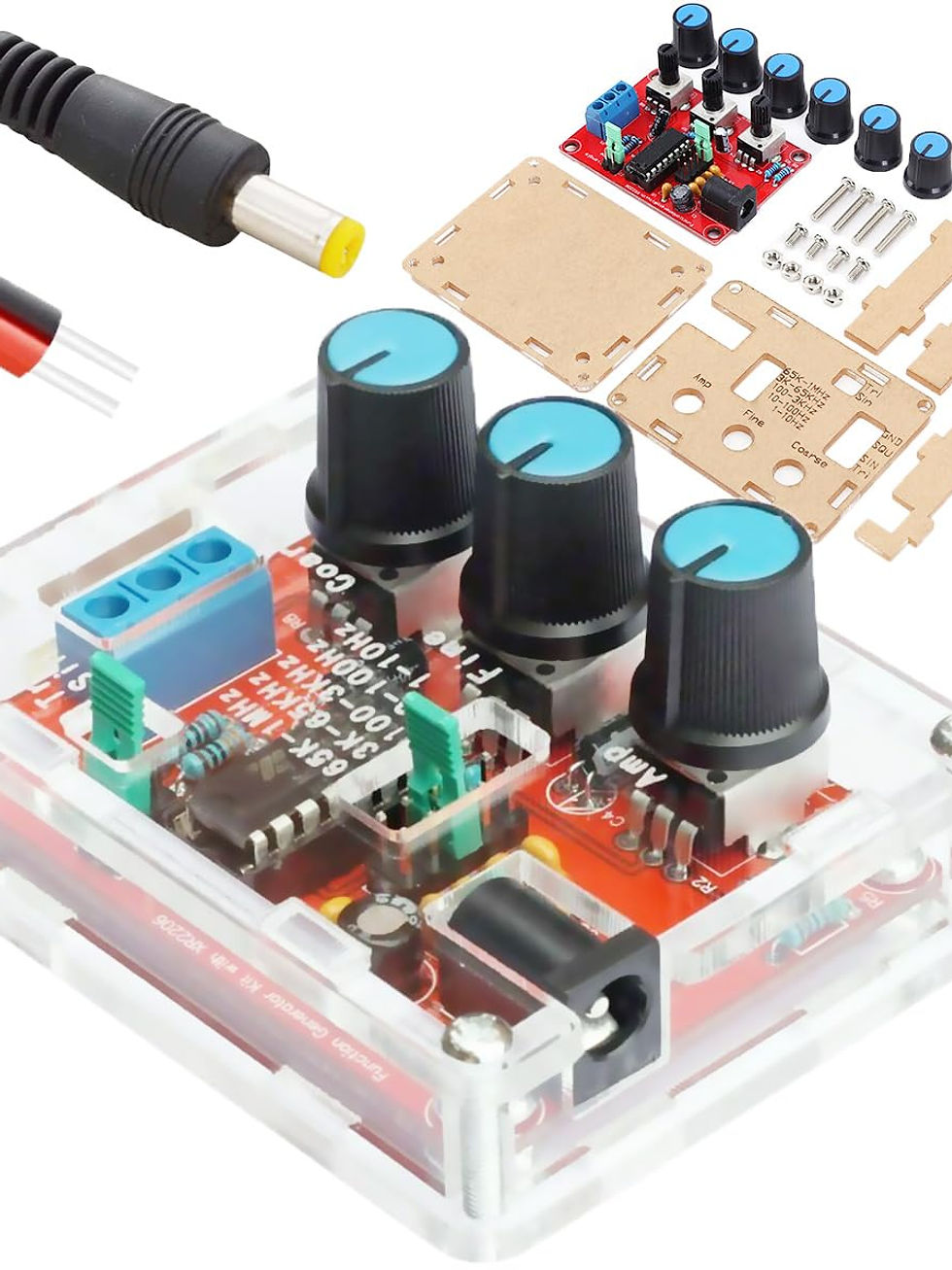

XR2206 Signal Generator Module High Precision Function Signal Generator Frequency 9-12V DC Input Sine/Triangle/Square Output 1Hz-1MHz Adjustable,with DC Male Cable
Features: 1.High resolution, can generate sine/triangle/square waveforms.
2.Frequency range: 1Hz-1MHz. 3.Adjustable frequency and amplitude. 4.Frequency
adjustment features coarse tuning and fine tuning. 5.Wide power supply range,
use 9-12V external power or 9V battery(NOT Included). 6.All are through hole
components, easy for installation. Specifications: Amplitude: 0-3V at 9V DC
Input Distortion: Less than 1% (at 1KHz) Flatness: +0.05dB 1Hz - 100kHz
Amplitude: 8V (no load) at 9V DC Input Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz) Symmetry: Less than 5% (at 1KHz) TRIANGLE
WAVE:Amplitude: 0-3V at 9V DC Input Linearity: Less than 1% (up to 100KHz)
10mA Precautions for welding installation: 1.The components are welding the
front board, from low to high principles, namely the first low welding
components, such as, capacitor, resistor, diode, etc. 2. Welding IC socket,
terminal blocks, finally power socket, adjustable potentiometer. 3.Insert the
power supply, power supply for 5.5 x 2.1 port, inside and outside is negative
polarity;Fitting for 9-12 v power supply voltage, and the waveform may not be
stable for more than 12V. Package Includes: 1 x XR2206 Signal Generator module
1 x DC male cable

Product Features



WHAT IT DOES: The XR2206 signal generator can generate various waveform signals, such as sine wave, triangle wave, square wave, etc.Can be used to test and measure various circuits.

Good precision: The XR2206 function signal generator is precise, with a transparent case box shell for good assemble.

SPECIFICATION: Voltage Supply: 9-12V DC Input;Waveforms: Square, Sine, Triangle;Impedance: 600 Ohm + 10%;Frequency: 1Hz-1MHz.

SINE WAVE: Amplitude: 0-3V at 9V DC input;Distortion: less than 1% (at 1KHz);Flatness: +0.05dB 1Hz - 100kHz.

SQUARE WAVE: Amplitude: 8V (no load) at 9V DC Input;Rise Time: less than 50ns (at 1KHz);Fall Time: less than 30ns (at 1KHz);Symmetry: less than 5% (at 1KHz).

TRIANGLE WAVE: Amplitude: 0-3V at 9V DC input;Linearity: less than 1% (up to 100 KHz) 10 mA.

PRODUCTS INCLUDE: 1 x XR2206 Signal Generator module;1 x DC male cable.
