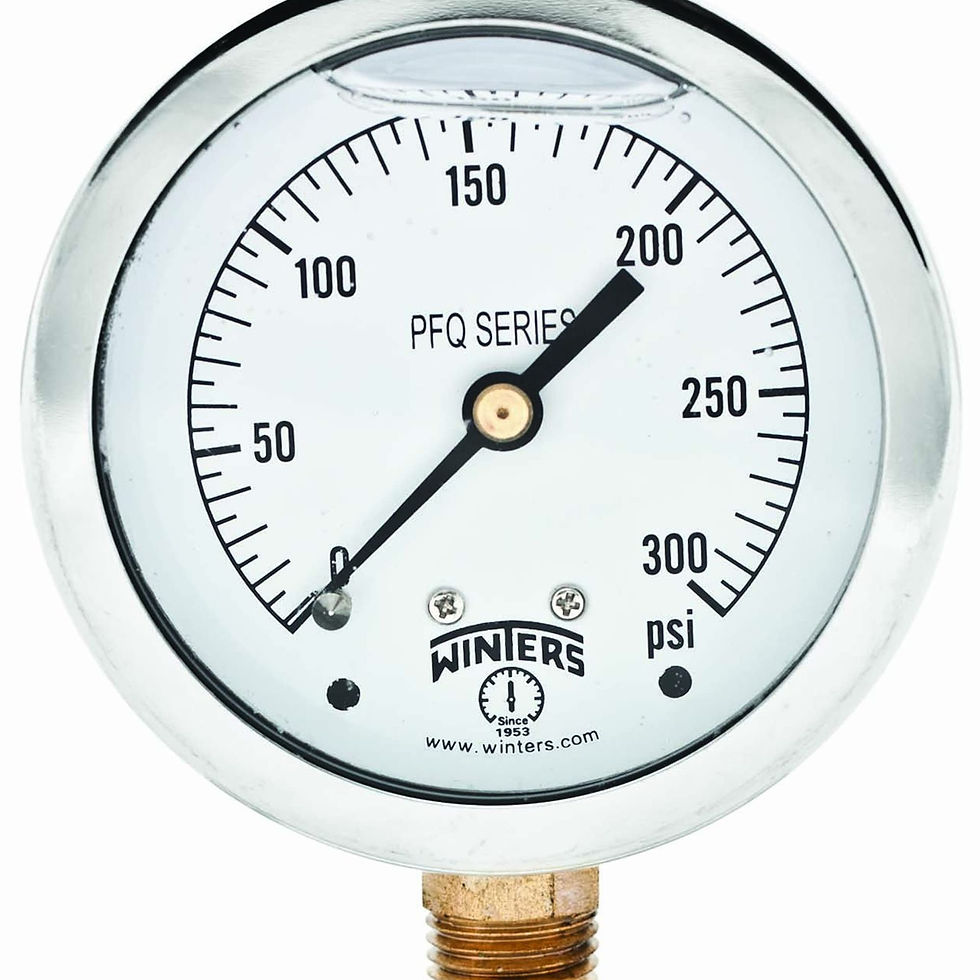

Winters 2-1/2" Dial Size, Liquid Filled Industrial Pressure Gauge, Brass Internals, 304 Stainless Steel Case, Single Scale 0-300 psi, 1.5% Acc, 1/4" NPT Bottom Mount, Glycerin Filled Pressure Gauge
_x000d_
The Winters PFQ series pressure gauge with brass wetted parts has a glycerin-_x000d_
filled circular dial enclosed in a stainless steel 304 case, and a male_x000d_
connection, and measures pressure with a single or dual scale with an accuracy_x000d_
of + or - 1.5% or 2.5%. The OT58 brass wetted parts are for measuring non-_x000d_
corrosive liquid and gas pressure. The stainless steel 304 case is also_x000d_
corrosion resistant and is Ingress Protection certified IP65 for protection_x000d_
against solid objects, including dust or liquids. The circular dial comes in_x000d_
1.5" (40 mm), 2" (50 mm), 2.5" (63 mm), or 4" (100 mm) diameters and is filled_x000d_
with glycerin for protection against vibration and pulsation. The dial is_x000d_
white aluminum with black and red markings. It has an aluminum, anodized_x000d_
black, pointer and the lens is polycarbonate for high impact resistance. The_x000d_
gauge measures pressure with a single psi scale or a dual scale of psi/kPa,_x000d_
psi/bar, Hg. vacuum/kPa, or Hg. vacuum/bar. The gauge is accurate to + or -_x000d_
2.5% of full scale value for the 1.5" and 2" dials and accurate to + or - 1.5%_x000d_
of full scale value for the 2.5" and 4" dials. The male connection comes with_x000d_
a 1/8", 1/4", or 1/2" NPT (National Pipe Thread) rate with a restricted_x000d_
orifice and is located at the bottom or center back of the gauge. The movement_x000d_
is OT59 brass, and the welding is silver alloy. The 6" (150 mm) socket gasket,_x000d_
the fill plug, and the lens ring gasket are all made of nitrile rubber for a_x000d_
tight seal. The over-pressure limit is 25% for pressures up to 1,400psi_x000d_
(9,653kPa) and 15% for pressures over 1,400psi (9,653kPa). The working_x000d_
pressure is a maximum of 75% of full scale value. The operating temperature is_x000d_
-4 to 150 degrees F (-20 to 65 degrees C). This pressure gauge is suitable for_x000d_
pumps, compressors, hydraulic presses, machinery, pneumatic equipment, and_x000d_
motors in harsh environments.Pressure gauges are instruments used to measure_x000d_
the pressure of a gas or liquid inside a vessel and, often, to help ensure the_x000d_
optimal amount of pressure for a given application. Pressure gauges can range_x000d_
from everyday instruments, such as those used to measure the air pressure in a_x000d_
car or bicycle tire, to highly accurate gauges used in mechanical and_x000d_
industrial processing. Most often, pressure gauges measure pressure relative_x000d_
to another reference. For instance, gauge pressure measures pressure relative_x000d_
to ambient air. An example of a pressure gauge measuring relative to ambient_x000d_
air is a tire pressure gauge or a blood pressure gauge. Differential pressure_x000d_
is the difference in pressure between two points, such as when measuring_x000d_
liquid flow along various points in a pipeline. An absolute pressure gauge_x000d_
measures pressure relative to a perfect vacuum, such as an atmospheric or_x000d_
barometric pressure gauge. All types of pressure gauges include either a male_x000d_
or a female mount to connect to the vessel where pressure is being measured,_x000d_
and display results on a dial with varying increments of measure across a_x000d_
given range.Winters Instruments manufactures pressure gauges, thermometers,_x000d_
diaphragm seals, pressure transmitters, and switches. The company, founded in_x000d_
1953, is headquartered in Toronto, Canada.
 _x000d_
_x000d_
Product Features
_x000d_

_x000d_

INDUSTRIAL PRESSURE GAUGE: Get your machine functioning at peak performance! Made of brass wetted parts for measuring non-corrosive liquid & gas pressure. Great for pumps, compressors, hydraulic presses, machinery, pneumatic equipment, motors & more.
_x000d_

IP65 CERTIFIED: The glycerin-filled circular dial is enclosed in a corrosion-resistant 304 stainless steel case & is IP65 certified for protection against solids, dust, or liquids. This pressure gauge is built to last & reliable for years to come.
_x000d_

SINGLE SCALE GAUGE: This pressure gauge features a single-scale gauge of 0-300 psi & can be installed anywhere in the circuit to measure pressure at any point. With a durable polycarbonate lens for maximum clarity, providing accurate, precise readings at all times.
_x000d_

ACCURATE: Its accuracy is + or - 2.5% of full-scale value for 1.5" (40 mm) & 2" (50 mm) gauges & + or - 1.5% of full-scale value for 2.5" (63 mm) & 4" (100 mm) gauge. While the lower mount has 1/8", 1/4", or 1/2" NPT process connection with a restricted orifice.
_x000d_

PRODUCT DETAILS: Variation: PFQ Stainless Steel Liquid Filled Gauge. Dial Size: 2.5" (63mm). Case: 304 Stainless Steel Case. Material: Bronze & Brass internals. Accuracy: + or - 1.5%. Perfect fit with no leaks & is easy to read.
