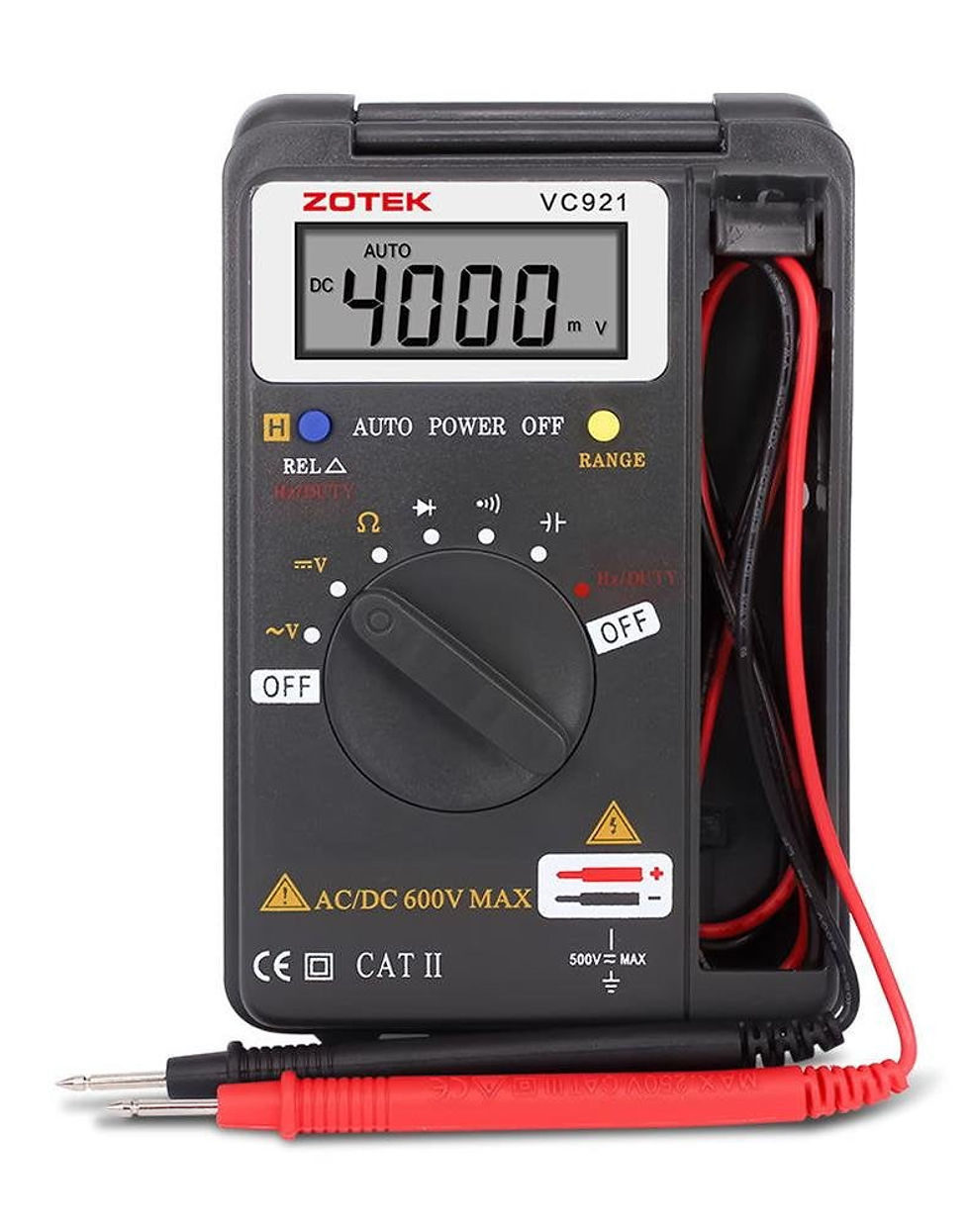

Digital Multimeter, Auto Ranging Pocket Digital Multimeter Digital Multi Tester - AC DC Voltage DC Current Resistance Diodes Capacitance Transistor Measuring Instrument (VC921)
Features ： Auto ranges 550V protection in Resistance、Capacitance and Frequency
ranges MAX display 4000 counts Sample rate: 3 times per second Data hold
Relative measurement Polarity identification Low voltage indication Auto power
off Main measurements：AC/DC Voltage, Resistance，Capacitance Diode and
Continuity Testing，Frequency and duty cycle Frequency：1Hz to 10MHz Capacitance
:10pF to 4000uF AC volts: 0.1mV to 750V DC volts：0.1mV to 1000V Resistance
：0.1Ω to 40MΩ Duty cycle：1% to 99% Multimeter Specifications ： (1) Capacitance
:4nF（±5.0%+4）,40nF（±2.5%+4），400nF/4.000uF/40.00uF/400.0uF/1000uF
/4000uF（±3.5%+4） (2) DC volts：400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4) (3) AC
volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4) (4) Resistance
：400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4) (5)
Frequency：99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2) (9) Duty
cycle：0.1% to 99.9%(±0.08%+2) (10) Measurement mode: △Σ mode (11) Over range
indication: OL (12) Working environment: 0~40℃, relative humidity <80% (13)
Supply power: 3V (1.5V AAA batteries  2 Pcs) (14) Dimension:
8012019millimeter (15) Weight: 126gram (16) Accessories: User’s manual,a
pair of test leads, and two 1.5V batteries
