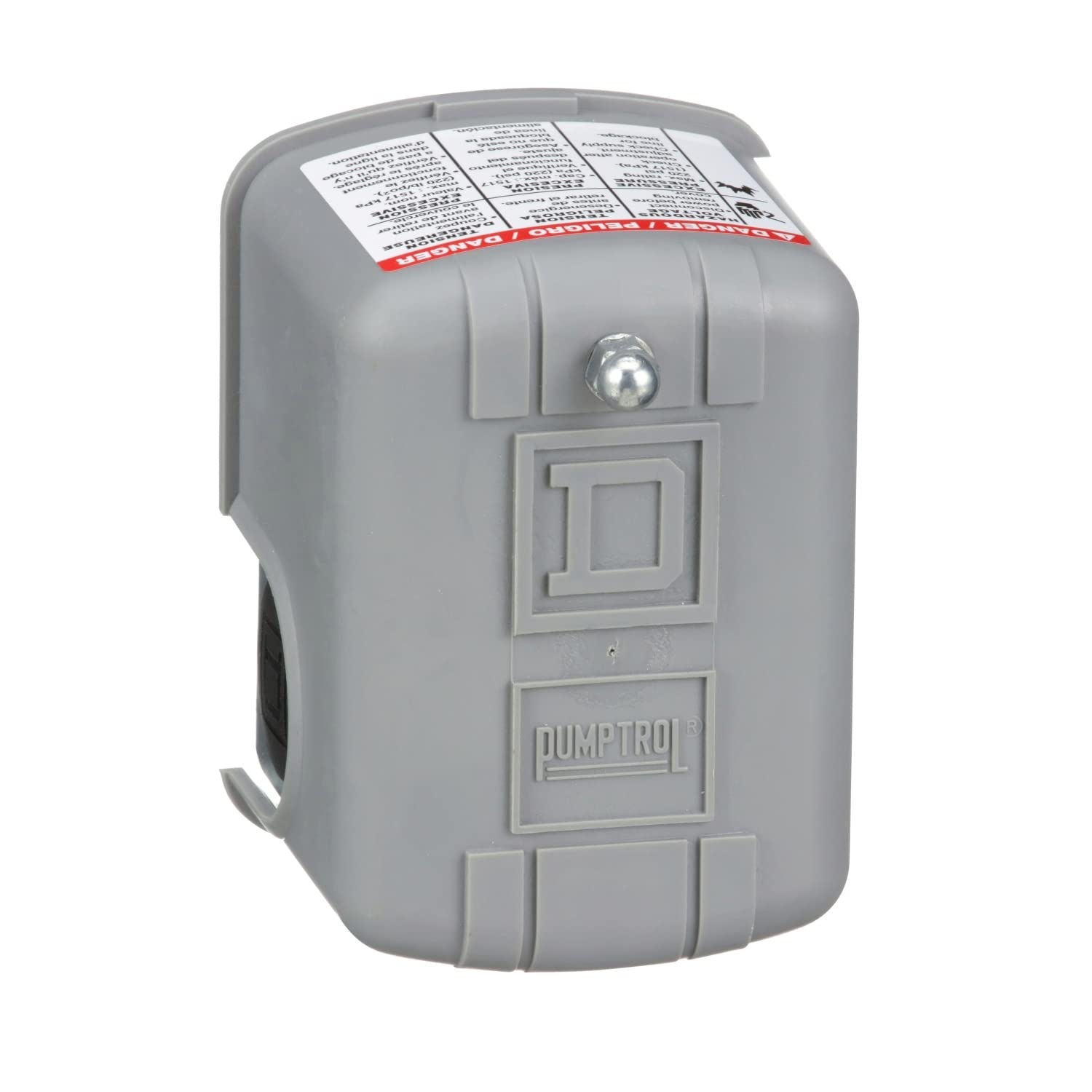

Telemecanique Sensors 9013FHG12J52 Air-Compressor Pressure Switch, 125 psi Set Off, 30 psi Fixed Differential, 1/4" NPSF Internal, Grey
This Square D Pumptrol 9013FHG12J52 air-compressor pressure switch controls an
electrically driven air compressor in a power circuit when the adjustable
threshold upon falling is reached and is set to turn off at 125 psi. The
switch has a 1/4" NPSF internal fluid connection and is suitable for use with
a lower-horsepower motor with 1. 5 hp or less. The non-adjustable differential
is 30 psi, and the adjustable cut-out range is 70-150 psi. The switch is
diaphragm actuated and has a fixed differential. The threshold, or setting
point, upon rising adjusts with a screw nut. The switch has screw terminal
electrical connections, and two 2-pole NC contacts open on rising pressure.
The enclosure is National Electrical Manufacturers Association (NEMA) Type 1
and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratories
(UL) Listed and Canadian Standards Organization (CSA) certified. This switch
includes a 2-way pressure release valve. Square D Pumptrol pressure switches
are manufactured by Schneider Electric.

Product Features



Pressure Switch - Water or Air

Pressure Switch used to control electrically driven motors

Diaphragm Actuated

Includes a 2-way pressure release valve
