Taidacent 12~24VDC Proximity Sensor 3 Wires Metal Proximity Sensor Thin Flat Inductive Limit Switch (NPN Normally Open, F15)
Maximum detection distance F15: 1. 5mm±10% F3: 3mm±10% F5: 5mm±10% Stable
detection distance F15: 0~ 1.2mm F3: 0~2.4mm F5: 0~ 4mm Standard detection
object Iron plate 8x8x1mm Iron plate 12x12x1mm Iron plate 25x25x1mm Detectable
objects: magnetic metals [iron, iron alloys, nickel, etc.] (non-magnetic
metals have a short detection distance) Hysteresis: Less than 10% of working
distance Power supply voltage: 12~24V DC±10% Current consumption: 15mA or less

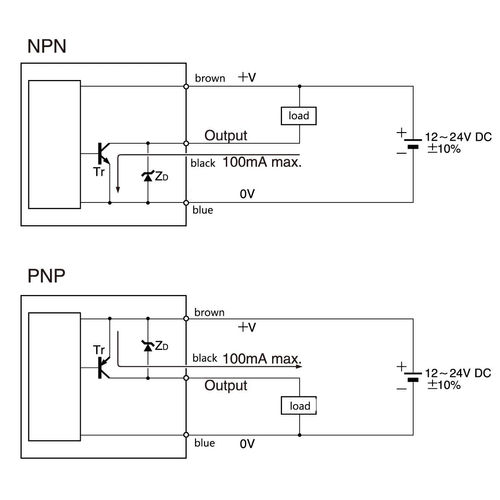

Control output: load power supply voltage below DC26.4V, load current below
100mA Open collector output (NPN/PNP output varies according to the model)
Maximum response frequency: F15: 1kHz F3: 600Hz F5: 500Hz Protection
structure: IP68 Ambient temperature: -25~ + 70°C Ambient humidity: 35~ 85%RH
Connection method: lead-out type (standard wire length 2m) Weight F15: about
35g F3: about 37g F5: about 58g

Product Features



Power supply voltage: 12~24V DC10%

Current consumption: 15mA or less

Detectable objects: magnetic metals [iron, iron alloys, nickel, etc.] (non-magnetic metals have a short detection distance)

Control output: load power supply voltage below DC26.4V, load current below 100mA

Hysteresis: Less than 10% of working distance
