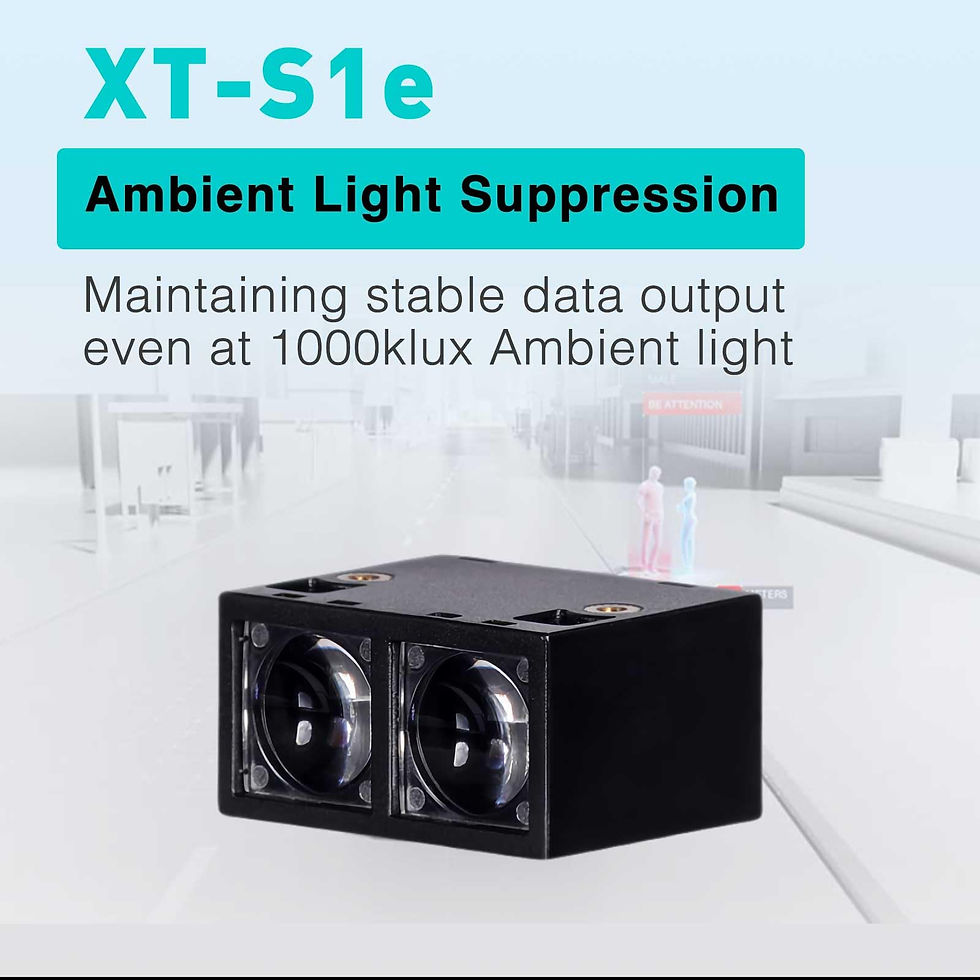

Single-Point LiDAR Sensor, 0.1�14m TOF Laser Rangefinder Module UART Output (HEX & ASCII), 940nm Infrared, 1�100Hz Adjustable, Low Power, for Drones, Robots, SLAM, Distance Measurement
Unlock precise, fast, and compact distance measurement with our advanced
Single-Point TOF Laser Rangefinder Module. Powered by Time-of-Flight (TOF)
technology and a 940nm light source, this module delivers highly accurate
distance measurements ranging from 0.1 to 14 meters with adjustable frequency
from 1Hz to 100Hz. Designed for performance and versatility, it offers dual
UART data output formats (HEX & ASCII), and operates reliably across varying
temperature and ambient light conditions thanks to meticulous temperature and
linear compensation algorithms. With a standby power consumption of just 3mW,
it supports serial wake-up, making it ideal for low-power embedded systems.
Its IO control output enables smart threshold-based automation, while the two
M2 mounting nuts provide stable and secure installation. Whether you're
building a drone, developing robotic SLAM, or enhancing a security system,
this compact and robust TOF LiDAR module is your go-to solution for accurate
distance sensing.

Product Features



High-Precision TOF Range FinderEquipped with Time-of-Flight (TOF) technology and a 940nm infrared light source, this laser rangefinder delivers fast, accurate distance measurements from 0.1 to 14 meters, even in challenging indoor and outdoor environments.

Dual UART Output FormatsSupports both HEX and ASCII output via UART interface for flexible integration into various systems. Ideal for developers, engineers, and robotic applications needing versatile data output.

Low Power & Smart Sleep ModeConsumes only 3mW in standby mode, with serial port wake-up supported. Perfect for battery-powered devices such as drones, mobile robots, and IoT systems that require energy-efficient operation.

Easy Installation & Compact DesignFeatures two M2 threaded metal inserts on the bottom for secure and repeatable mounting. Ultra-lightweight and space-saving with dimensions of 301624mm and a weight of only 9g.

Advanced Features & Wide ApplicationsAdjustable measurement frequency (1100Hz) and customizable distance threshold control via IO level output (TTL). Widely used in drone altitude hold, robot navigation, SLAM mapping, security systems, and industrial distance measuring tools.
