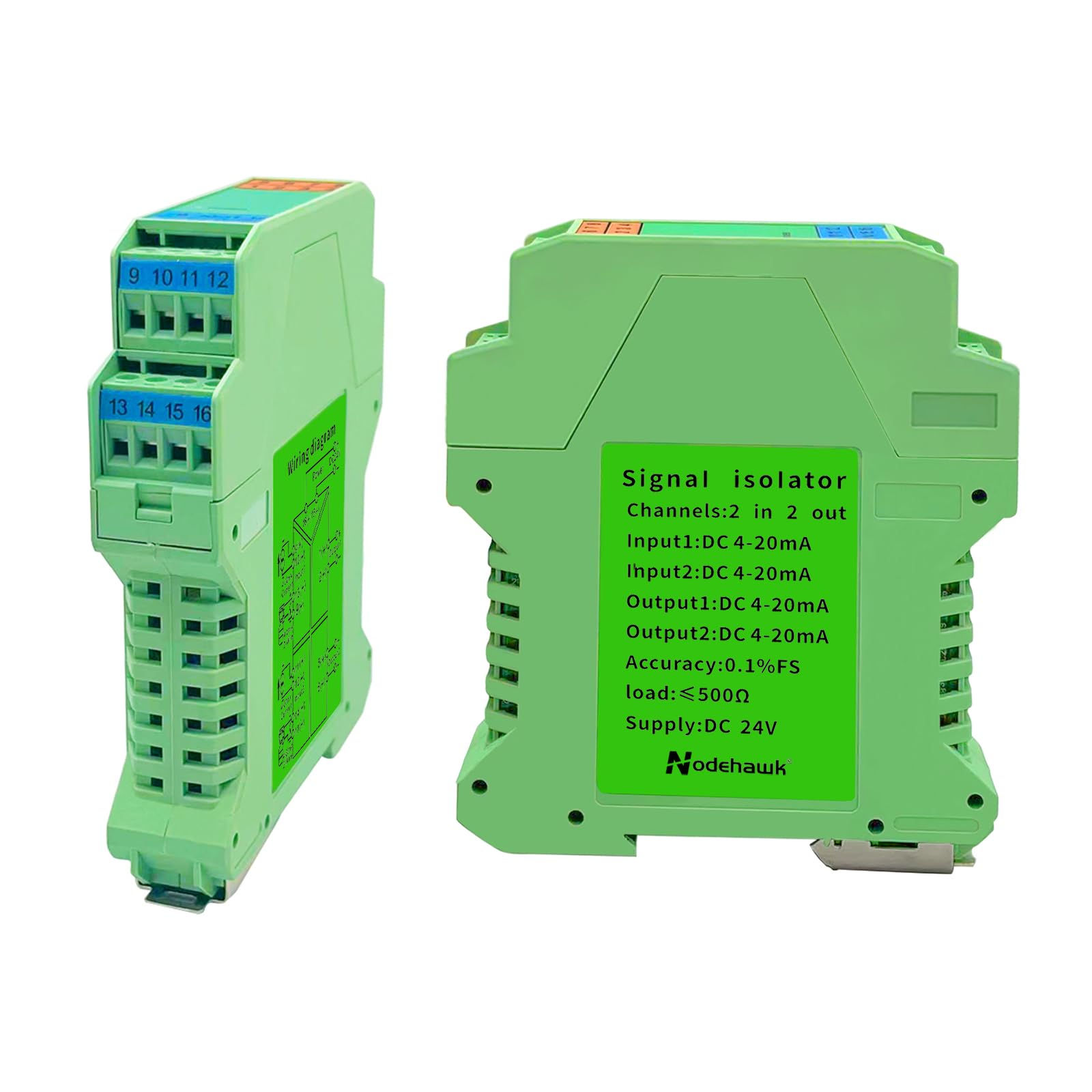

Signal Isolator DC 24V,PLC Detect Signal Conditioner,Module Analog Output(2 in 2 Out 4-20mA Turn 4-20mA)
Product Name: DC current signal isolation transmitter Model: GLG Type: 2 in 2
out, 4-20mA to 0-5V Power supply voltage: DC 24V �10% Rated power consumption:
1W Response time: 100MS Insulation strength: 2000V AC/1MIN Input impedance:
50? Ambient temperature: -20 - 55 (�C) Package list: 1 � Signal Isolator

Product Features

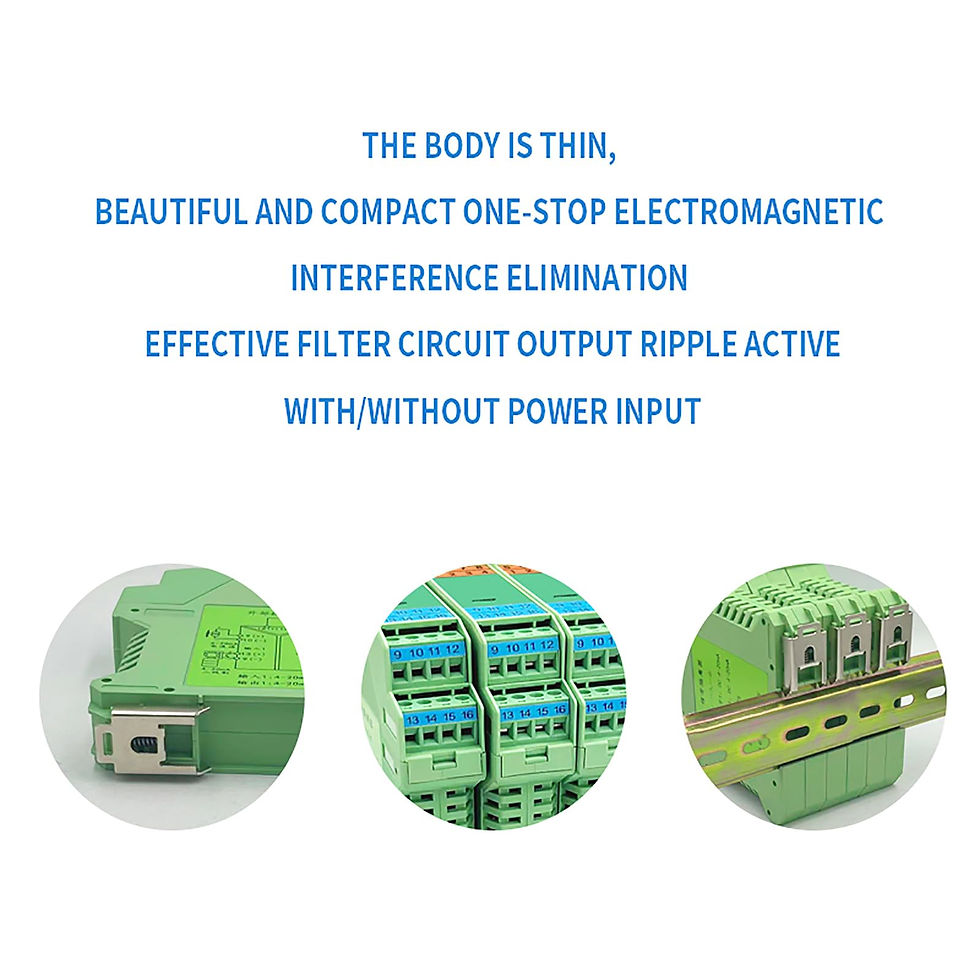

Signal Isolator:Input and output,ultra-thin, intelligent and isolated safety net. Channel configuration: 2 input and 2 output.Standard guide rail slot, used in conjunction with guide rails, facilitates dense installation and saves space

Specifications: DC signal conditioner supply voltage: DC 24V  10%; rated power consumption: 1W; response time: 100MS; dielectric strength: 2000V AC / 1MIN; input impedance: 50; ambient temperature: -20 - 55 (C); size: 3.93  0.88  4.5 Inches.

Performance: Input/output signal isolation: effectively removes electromagnetic interference during signal transmission. Input signal/power isolation: effectively filters out noise in the signal, greatly improving signal stability

Widely Used: Signal converters are widely used in industrial equipment, such as large motors, medical equipment,Power system,mechanical equipment,etc.

Product Material and Safety: Current signal conditioner is made of high quality electronic components with high precision,High precision, low temperature drift
