Pressure Sensor, Cuidr Thin Film Pressure Sensor, 20G~10KG 80mm Force Sensing Resistor, Long Strip Sensor for Smart Home, Wearable Devices (2 Pack)
Description The pressure sensor is durable and designed to sense static and
dynamic pressure in a high respond speed. Its advantages of recording the
intensity and frequency of force make it widely used in all kinds of
applications, such as bed monitoring system, intelligent sneaker and medical
device system. Specifications Working voltage: DC 3.3-5V Measurement range:
20g-10KG Thickness: <0.4mm Response point: <20g Static Pressure & Dynamic
Pressure Measurement (within the frequency of 10Hz) Initial Resistance: >10MΩ
Activation Time:<0.01s Operating Temperature: -40_~+85_ Lifespan:>1million
times Hysteresis: +15%_(RF+ -RF-)/FR+, 3000g Force Initial resistance: greater
than 200MΩ (no load) Response time: <1ms EMI: Not generate EDS: Not generate
Package Includes 2 x Film Force Pressure Sensor 20g-10kg

Product Features



Premium MaterialComposed of ultra-thin film of excellent mechanical property, excellent conductive materials and nanometre pressure sensitive layers

High PerformanceThe pressure sensor can sense static and dynamic pressure in a high respond speed, recording the intensity and frequency of force

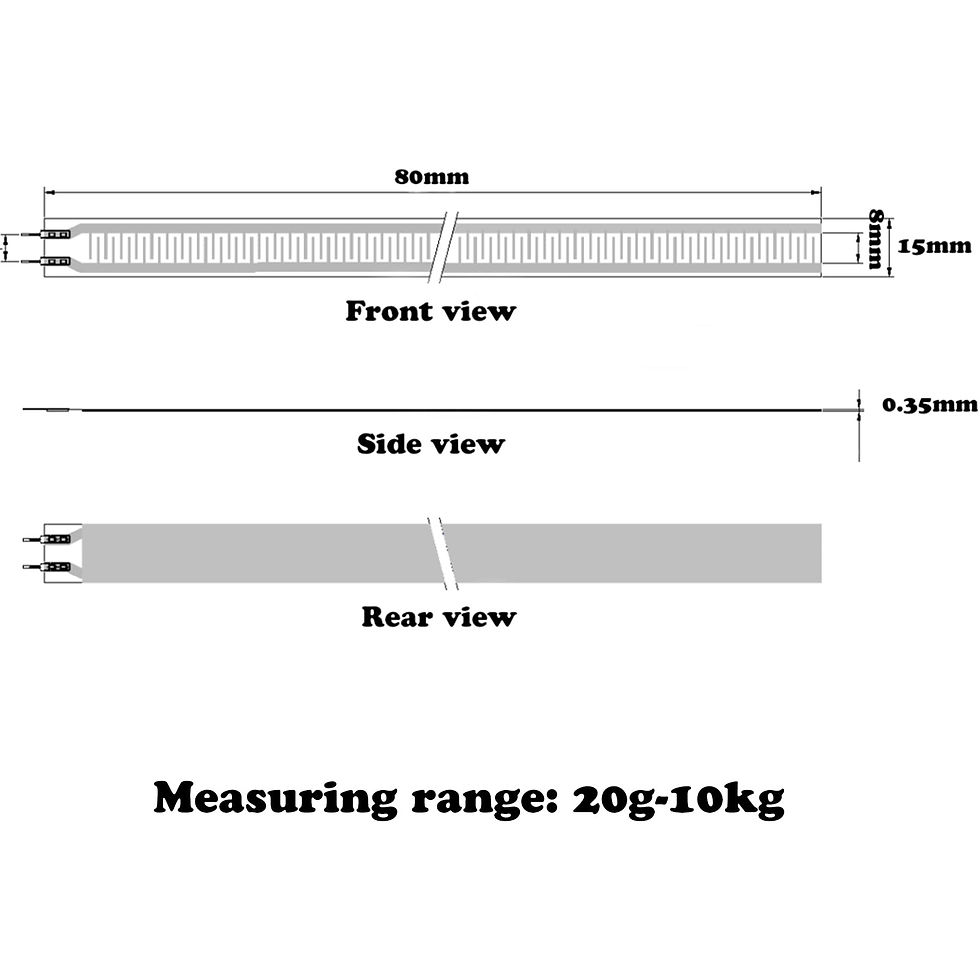

Important ParameterLength: 80 mm/3.2in; Width:15mm/0.6in; Range: 20g ~ 10kg; Thickness: less than 0.4mm; Response point: less than 20g; Test voltage: 3.3-5v; Working temperature:- 40C~ 85C

Widely ApplicationsThe pressure sensors are widely used in smart home, wearable devices, new energy and medical electronics, such as bed monitoring system, sitting posture monitoring, correction, smart cushion and medical device system, etc

Package Includes2 x Pressure Sensor, the sensor comes with 4 3mm diameter positioning holes, which allows you to fix the sensor to other devices
