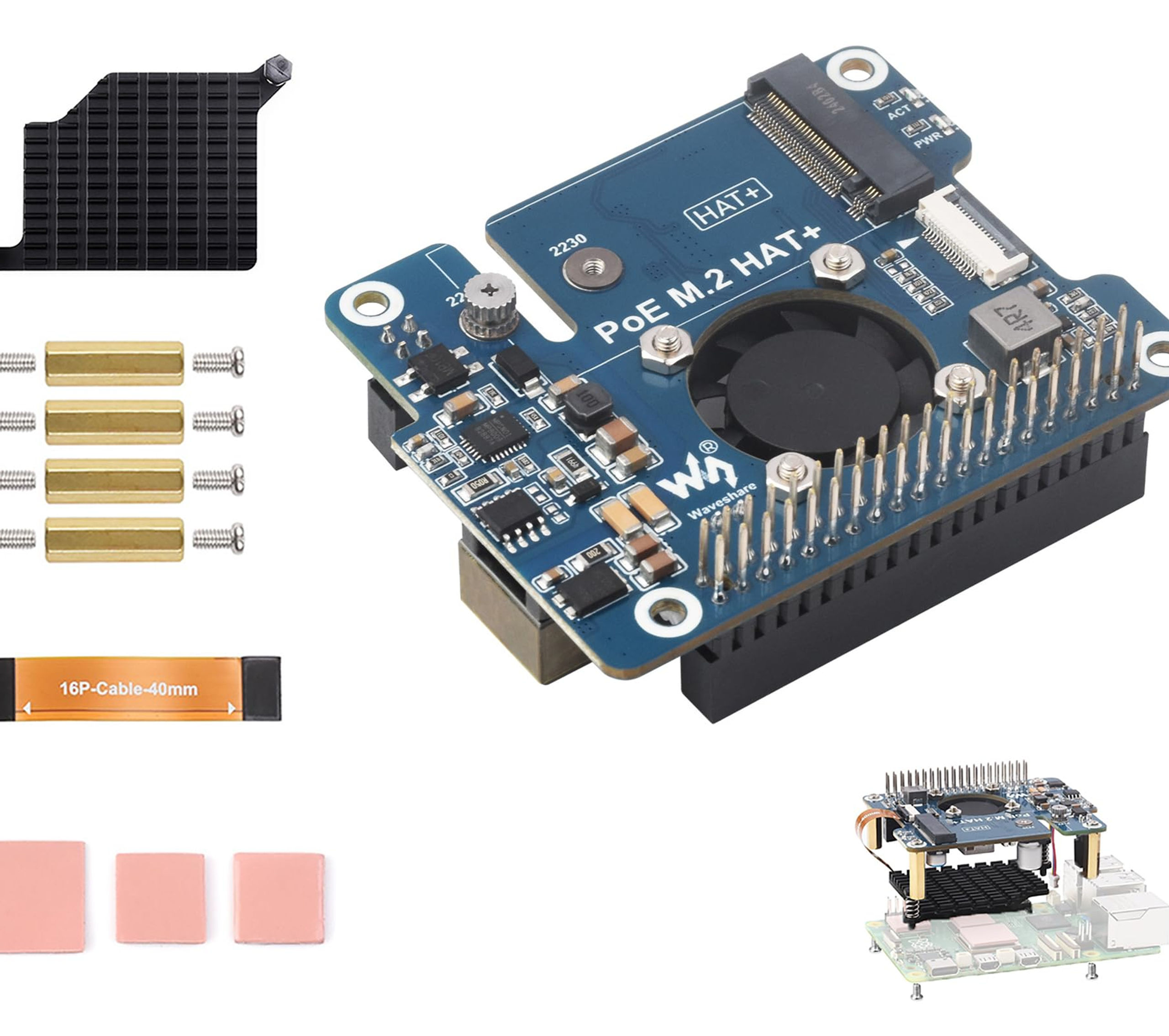

PCIe to M.2 Adapter with PoE HAT for Raspberry Pi 5, Power Over Ethernet Support IEEE 802.3af/at Network Standard, NVMe Protocol 2230/2242 M.2 Solid State Drive, Gen2 and Gen3 Modes

Product Features



PCIe To M.2 Adapter with PoE HAT compatible with Raspberry Pi 5. Supports IEEE 802.3af/at Network Standard. Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

NVMe Drive Protocol Support: Compatible With 2230/2242 Size M.2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

Improves reading/writing speed of your Pi-- NVMe: the theoretical transmission speed of the GEN2 Mode is up to 8 Gbps. The measured reading/writing speed is approx. 800 MB/s.

Connecting to PI5 via 16PIN Cable: Based on 16PIN PCIe Interface of Raspberry Pi 5. Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

Power Over Ethernet: providing both network connection and power supply for your Raspberry Pi in one cable

Onboard Dual LED Indicators. Easy to monitor the Working Status. Active Cooling fan: Accelerate Cooling Effect, More Stable Performance

Onboard 5V & 12V header outputs: 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi
