Electric Magnetic Door Lock 60KG / 130LBS Holding Force 12V NC Mode Single Door Electric Magnetic Access Control Lock for Metal Door/Fire Proof Door/Wooden Door/Glass Door etc. (60 kg/130 lbs)�
Specification: Electromagnetic plate Material: Aluminum Alloy + Metal Plate
Armature Plate Material: Zinc Cover Finish: Anodized aluminum Color: Silver
Holding Force: 60kg/130lbs Input Voltage: DC 12V Operating Temp: -10 ~ +55C
(14-131F) Operation Current: 100mA Size: 2.95L x 1.26W x 0.43H (in)/ 80L x 37W
x 24H (mm) Armature plate: 2.95L x 1.26W x 0.43H (in)/ 75L x 32W x 11H (mm)

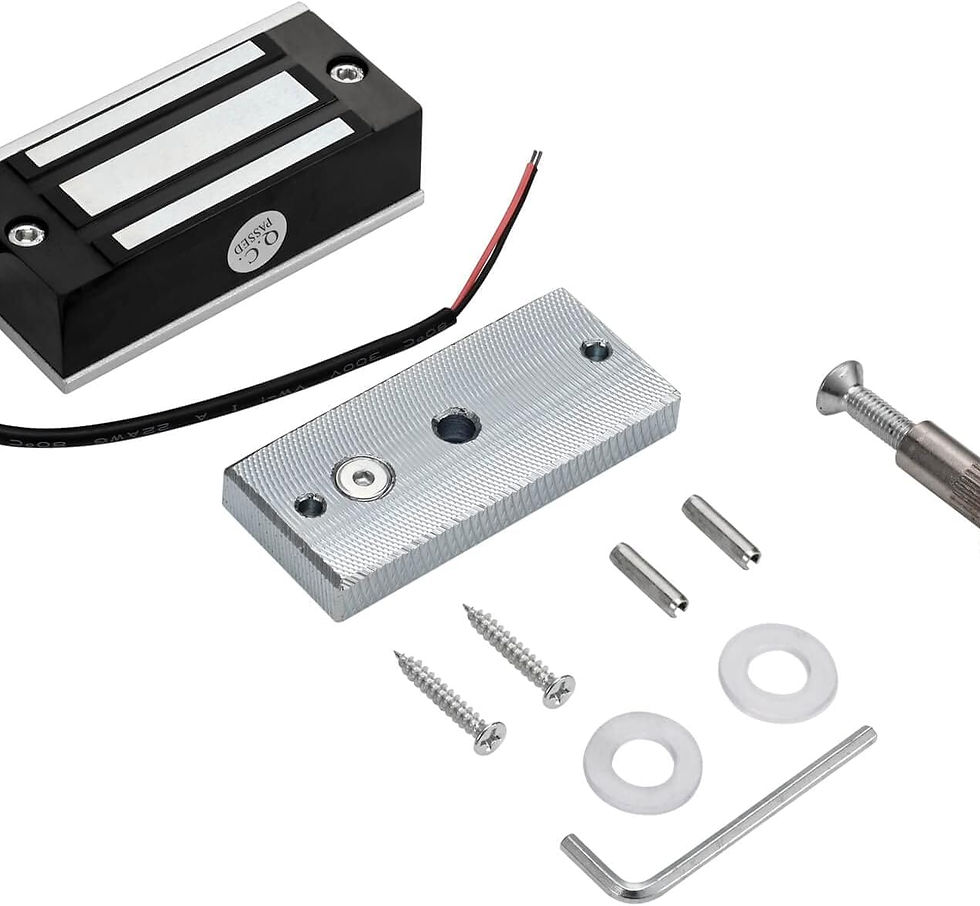

Package Weight: Approx. 1.2lb (0.54KG) Package list: 1  Electromagnetic Lock
1  Armature Plate 1  Screws Pack 1  User Manual (English)

Product Features



Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 60KG (130LBS) and significant features.

Mini Size: The lock size is 3.15'' x 1.46'' x 0.94'' (80x37x24mm); Armature plate: 2.95'' x 1.26'' x 0.43'' (75x32x11mm). Holding Force: 60kg (130lbs).

Mode: NC Mode, Locked whilst power supply is operating, unlocked when power off; Fail-Safe Mode. Voltage: DC12V.

Security protection: This electric magnetic lock has safety function. It is built in voltage spike suppressor.

Wide Applications: This magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.
