DEVMO Motor Controller,PWM DC Motor Speed Controller 10-50V 60A High Power HHO RC Driver PWM Controller Module 12V 24V 48V 3000W Extension Cord with Switch
Power requirements: 10-50vdcRated current: 60a (maximum output
current)Frequency: 15000hzControl motor power: 0.01-3000w,12V 720w (max), 24v:
1440w (max)36v: 2160w (max), 50v: 3000w (max)Standby current: 0.04aAdjustment
range: 5-100PCB size: 122x87x32mm

Product Features



operating voltage range is DC 10-50V, max rated current is 60A, control power range is 0.01-3000W, working temperature range of -20C-40C.

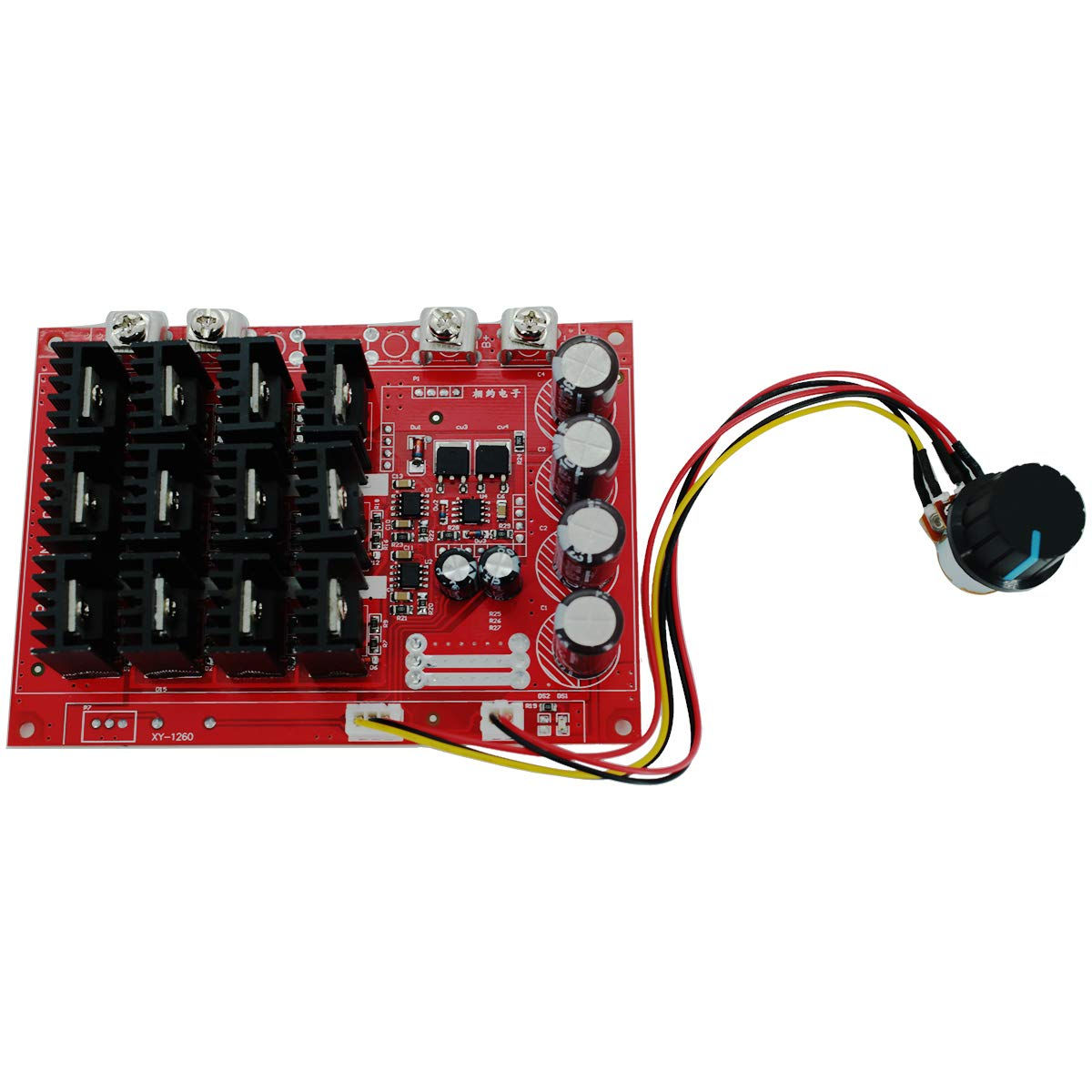

High-end Configuration: Our motor driver control board uses PWM modulation system to adjust light & speed. In addition, it is designed with radiators to doing heat dissipation created by MOS tube.

Convenient Speed Control: With wires to connect potentiometer and regulation switch to control the speed, it is convenient to use.

Low Quiescent Current: our speed regulation module is designed with low quiescent current 0.04A(When the working voltage is DC10V-50V, the quiescent current cannot exceed 40mA).

Wide Application: our motor driver control board can be applied to universal DC brush motor speed regulation; car motor speed regulation; production line conveyor belt speed regulation; electronic fan speed regulation etc.
