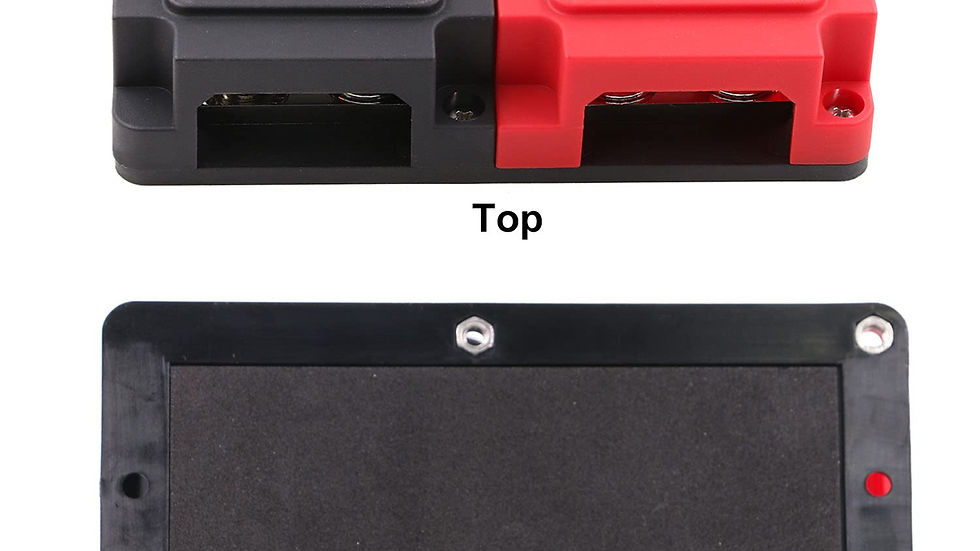

Bus Bar Copper 12V - 48V DC 400A with 8X 5/16" Posts Terminals Power Distribution Block Marine BusBar with Cover Heavy Duty Buss Bar for Car Boat RVs Solar Multi-amp Multi-Battery Audio System

Product Features



1, Premium Materials & Security: Tin-Plated Copper distribution block bus for max conductivity and security. High-current collecting rail is Glass Fiber and Reinforced Nylon base, which ensures great mechanical strength and durability. Stainless steel screws and nuts for improved corrosion and rust resistance in salt water or corrosive environments

2, The rated current of the 8-studs power distribution block bus bar is 400 Amp. The max. voltage is 48 V DC

3, Ideal for Multiple Batteries Wiring Configurations: Our bus bar terminal block with 8x 5/16" (M8) bolts Terminals, more connection points for the red positive pole and the black negative, removable sides for easy wiring configuration. The 8-way bus wiring block will make setting up your electrical systems quick, neat and easy

4, Safely Fit for: The Terminal busbar is suitable for max voltage 48 v dc power systems such as solar panel, RV, vehicle, trucks, yacht, fresh or salt water boats etc. to consolidate, distribute or protect your electrical system

5, The Heavy Duty Module Bus Bar Box Dimension (L x W x H): 6.61"x 3.11"x 1.57" ( 168x79x40mm)

6, Gauge Cable Fit: The bus bar is rated for 400 amps and the threaded stud is 5/16"( M8). Any gauge wire will work as long as the terminal end has a 5/16" Lug and the combined amp draw of all connected wires do not exceed 400amps.

7, Safe Note: a, the wire and over current protection is sized based on the load; b, Make sure the Lug can work with 400A current

8, Easy Installation: surface mount, screws included
