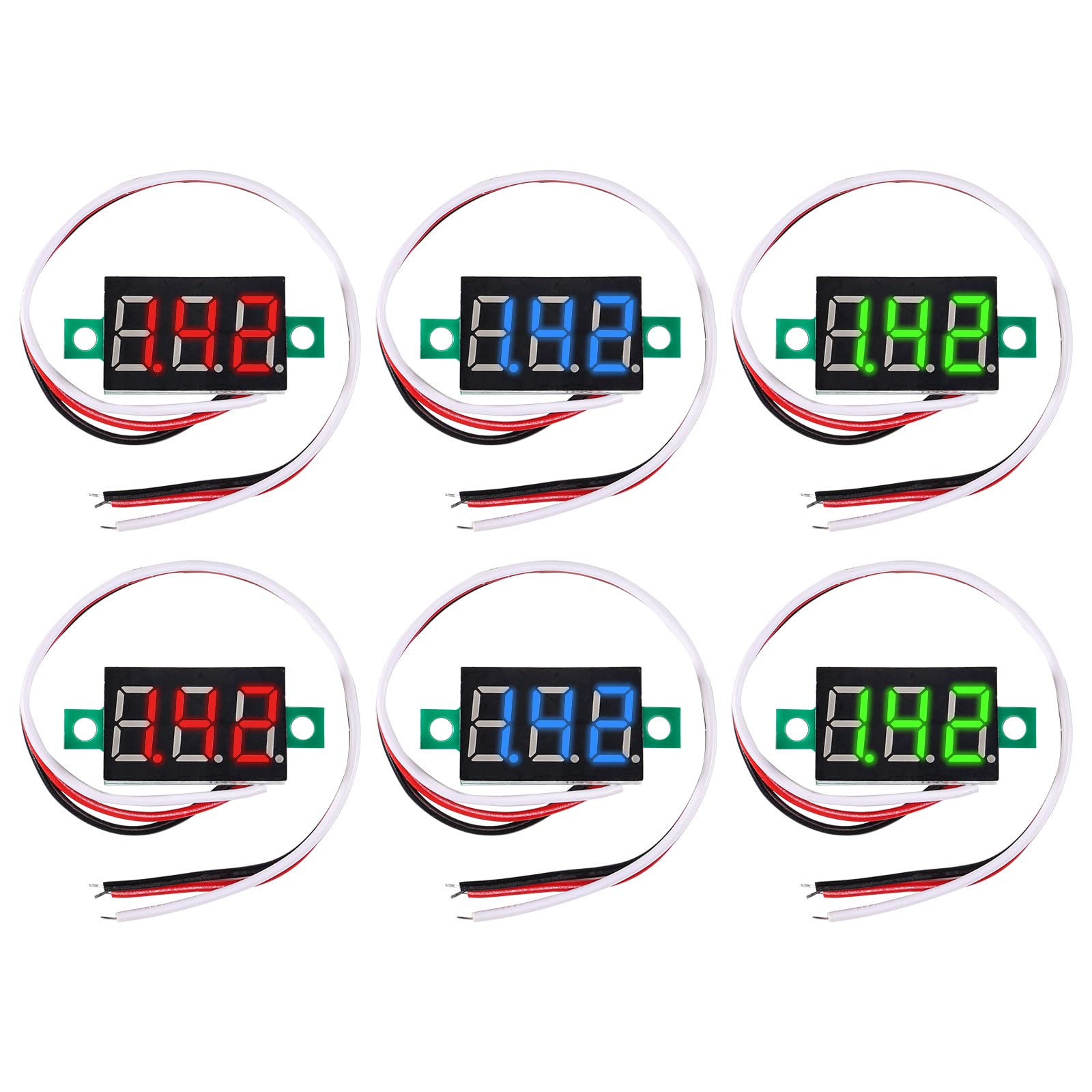

6pcs Voltage Tester 0.36" 3 Wire DC 0-30V 3-Digit Voltmeter Gauge Tester 3 Colors LED Display Voltage Tester Small Battery Monitor Voltage Meter Blue Red Green
Specification： Measuring range: DC 0.00V-30.0V Power supply range Red:
DC4.50-30.0V, Green: DC 4.70-30.0V, Blue: DC5.00-30.0V Working current Red
<23mA, Green <18mA, Blue <13mA Measurement accuracy:+/-1 %(+/- 1 digit)
Refresh Rate：about 300mS/times Operating Temperature:-10 °c ~ +65 °c
Display:Three 0.36 " LED digital display Display Color:Green/Red/Blue Lead

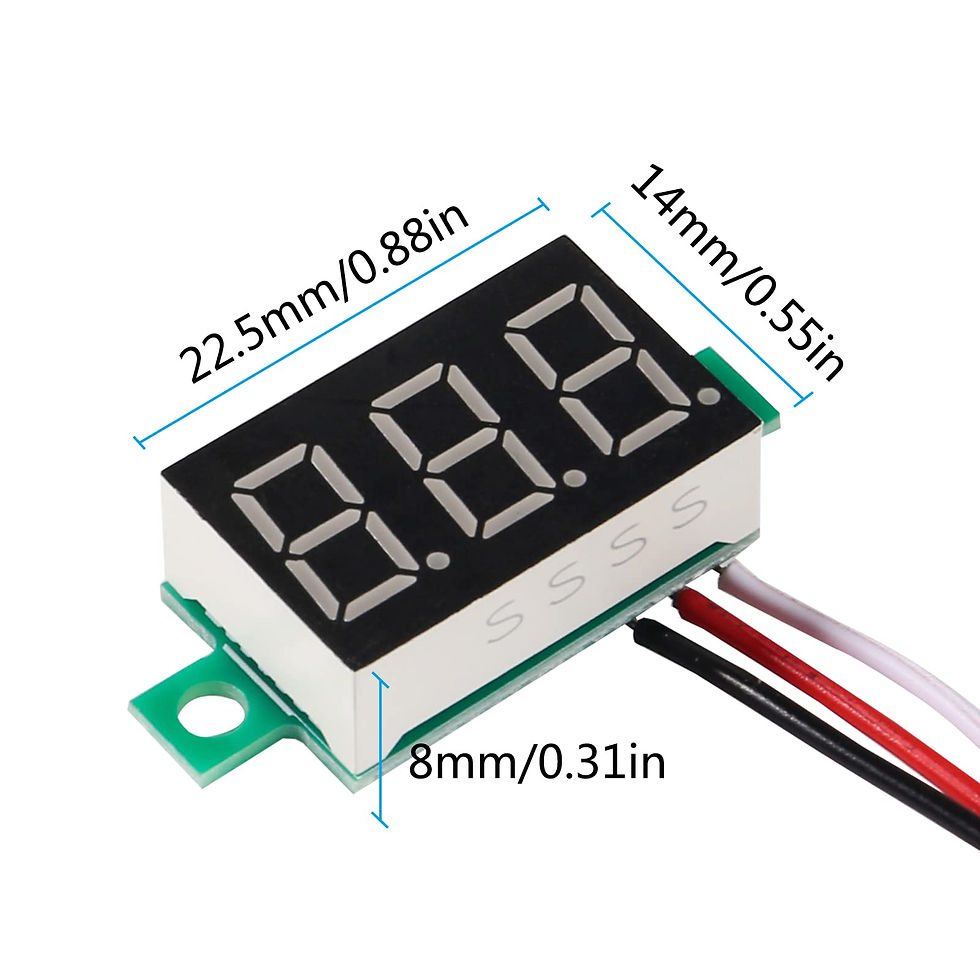

length: 15cm Size:23 x 15 x 10 mm LWH Mounting holes distance:28mm Hole
diameter:2.8mm Wiring: Red: Power Supply +,(4.5~ 30V DC) Yellow: Measure
Voltage +,(0.00~ 30.0V DC) Black: Power Supply -, Measure Voltage - Note:
1.The meter requires extra power supply of DC 4.5 to 30V 2.Its resolution is
0.1V and its actual error might larger than 0.1V Package Included: 6Pack of
0.36" DC 0.00-30.0V Voltmeter NOTES: When measured voltage is larger than 30V,
the voltmeter will be damaged.

Product Features



Three-wire connection enable the voltage test rang from 0.00 to 30V;Two-wire meters cannot measure the voltage that is below 3V.

Accuracy:Accuracy can be adjusted automatically, less than 10V can be accurate to 0.01V, greater than 10V can be accurate to 0.1V.

Display: Three 0.36" digital LED Tube;0.36" visible LED display, easy to read even in dim light.

Feature:With reverse polarity protection, the meter will not burn out when the polarity is reversed, but it is not displayed on the screen.Only three wires,easy to connect.

Detection rate :200ms/time; Accuracy :3(+/-1 word); Operating temperature:-10 ~ +65C;Red DC 4.5-30V, green DC 4.7-30V, blue DC 5-30V.
