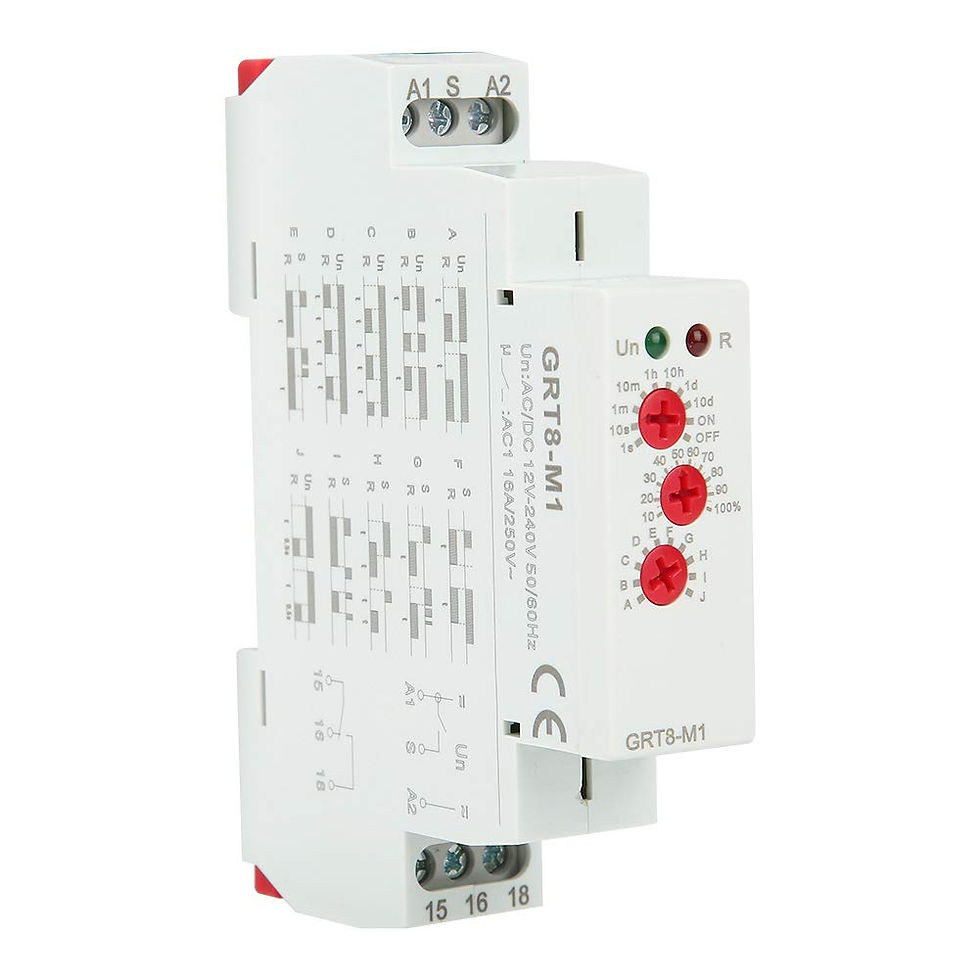

12V-240V Time Delay Relay, Timer Relay, Multifunction Time Relays, with 10 Functions Rail Mount AC DC, for LED Turn Signal, Home
Specification: Power terminal: A 1-A 2 Power consumption: AC0.09-3
VA/DC0.05-1.7 W Setting method: knob Setting accuracy: 10 % Power indicator:
Green LED Delay range: 0.1s-10 days, normally open, normally closed Repeated
accuracy: 0.2 % Temperature fluctuation error: 0.05%/?, at = 20? 1 x SPDT, 250
VAC/24 VDC Minimum switching power: 500 mW Output relay indication: red LED
Mechanical life: 1x107 Reset time: 200 ms Working temperature: -20?~55?
Mounting method: 35 mm DIN rail Mounting altitude: 2000 m Weight: Approx. 75
g/2.6 oz Package list: 1  Multifunctional Delay Time Relay

Product Features



Feature-Rich: This 12v timer relay has 10 kinds of delay functions, covering delay on, delay off, cyclic delay, etc., which can meet the delay needs in many scenarios and provide diversified solutions for your equipment control

Quick Installation: With the standard rail mounting, the installation process is simple and quick, no complex tools are needed to complete the installation quickly, which greatly improves the installation efficiency, saving your time and energy

Clear Indication: Equipped with green LED power indicator and red LED output relay indicator, intuitively displaying the working status of the device and the output status of the relay, convenient to understand the situation of the device

Multi-Discipline Application: Applicable to industrial equipment, lighting control, motors, fans, and other scenarios, a multi-purpose machine can be used in place of a variety of single-function relays

Quality Standard: Our products undergo strict testing before leaving the factory to ensure that the quality meets the standards. You can rest assured to purchase and use our products
